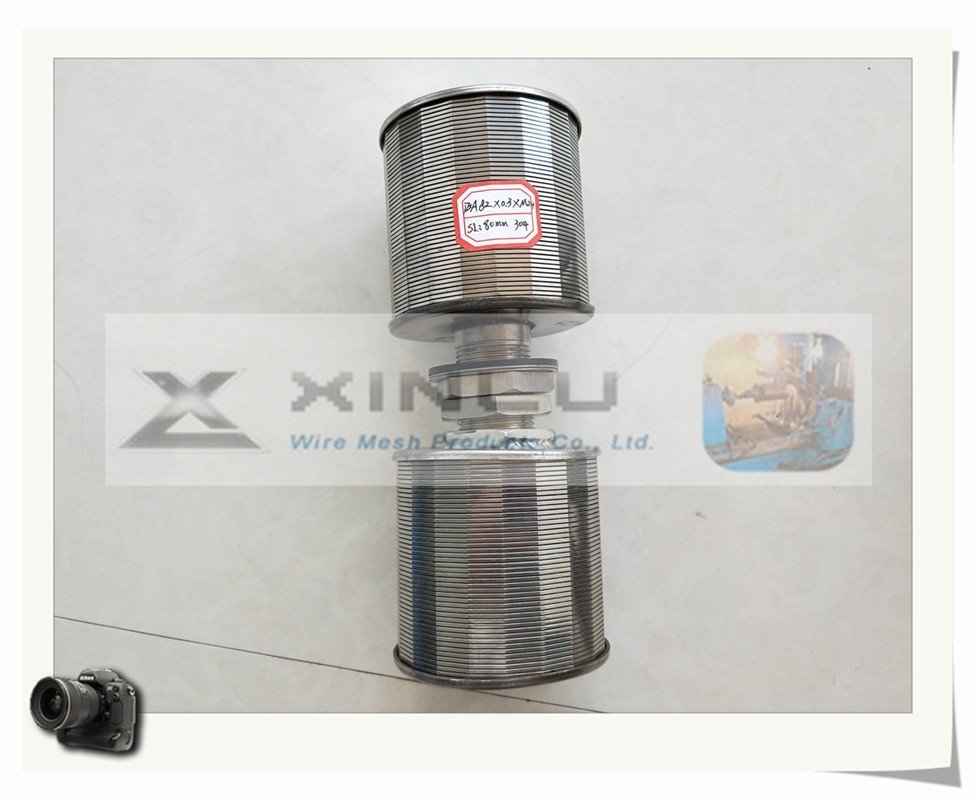

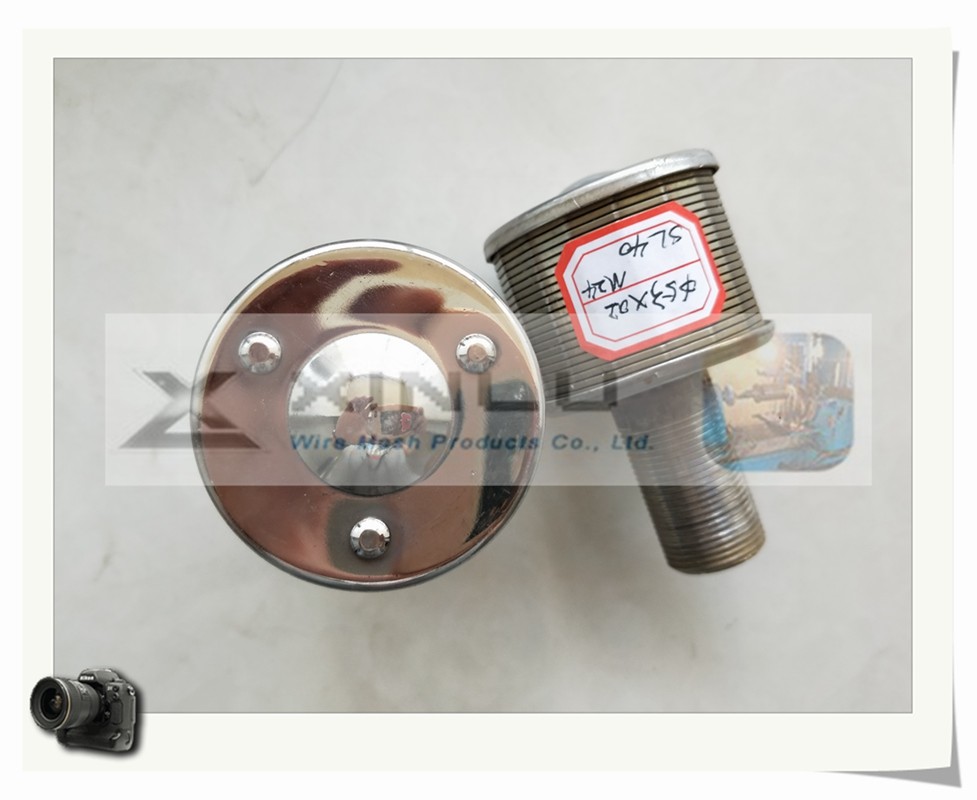

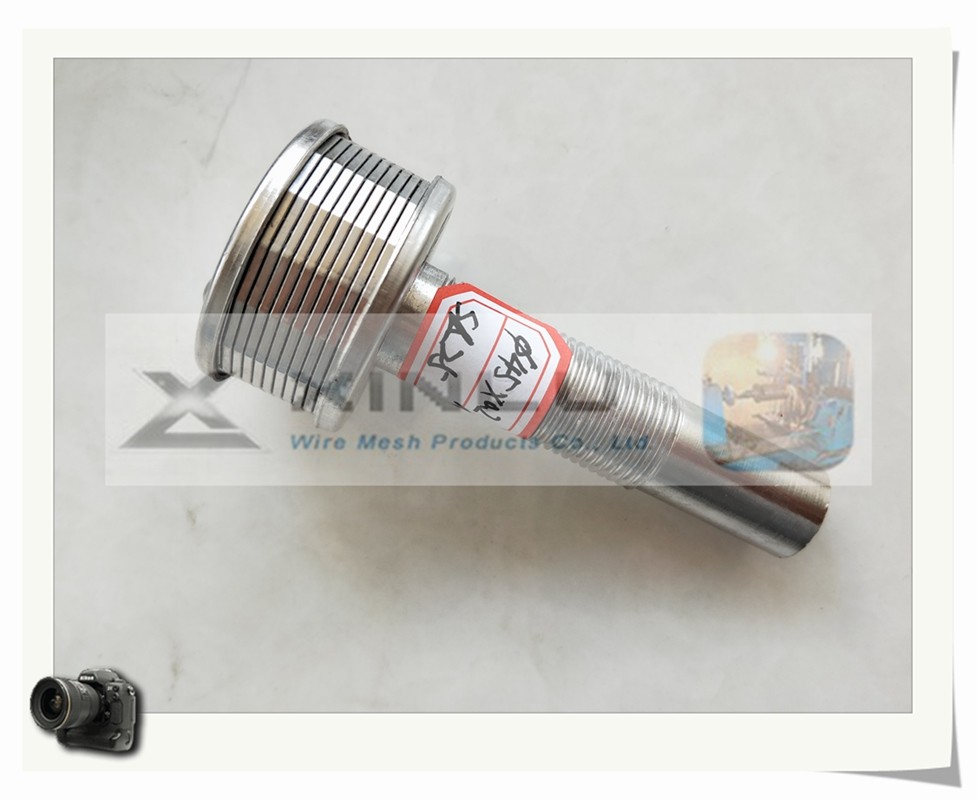

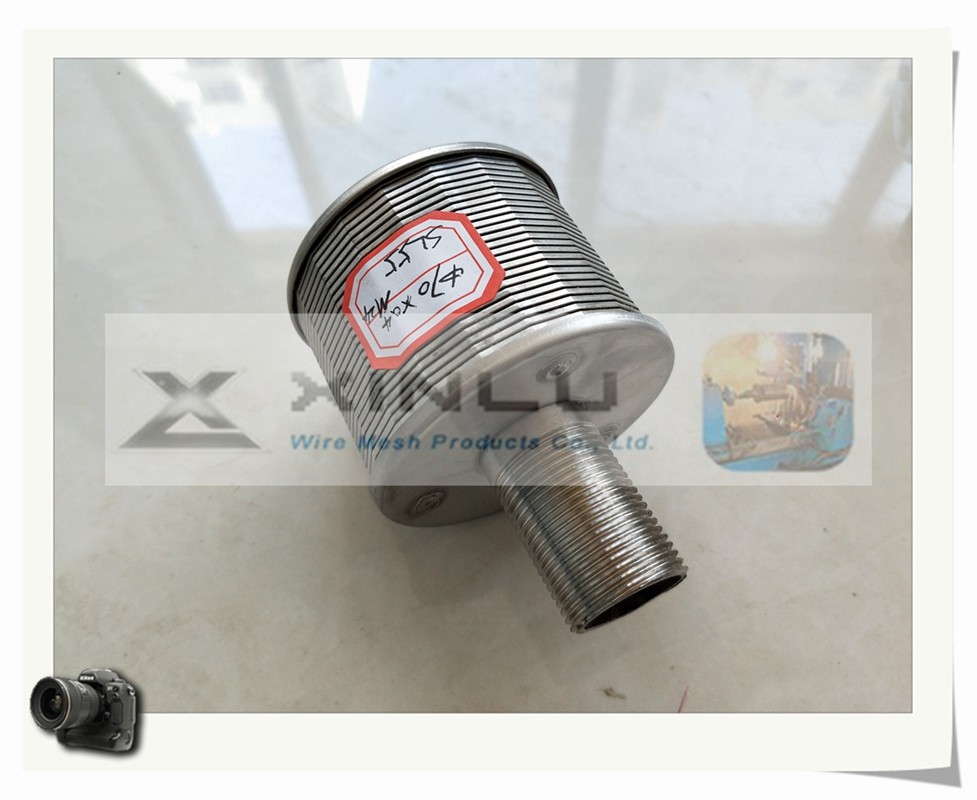

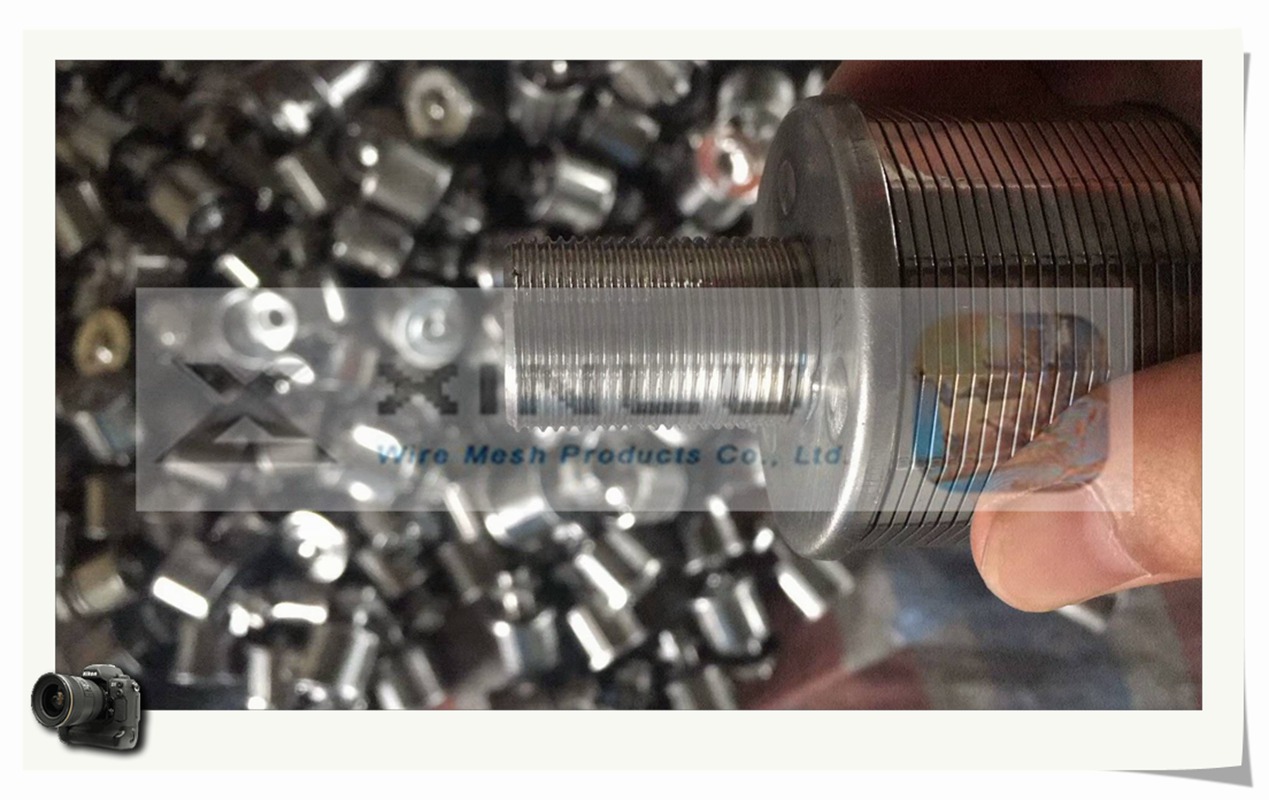

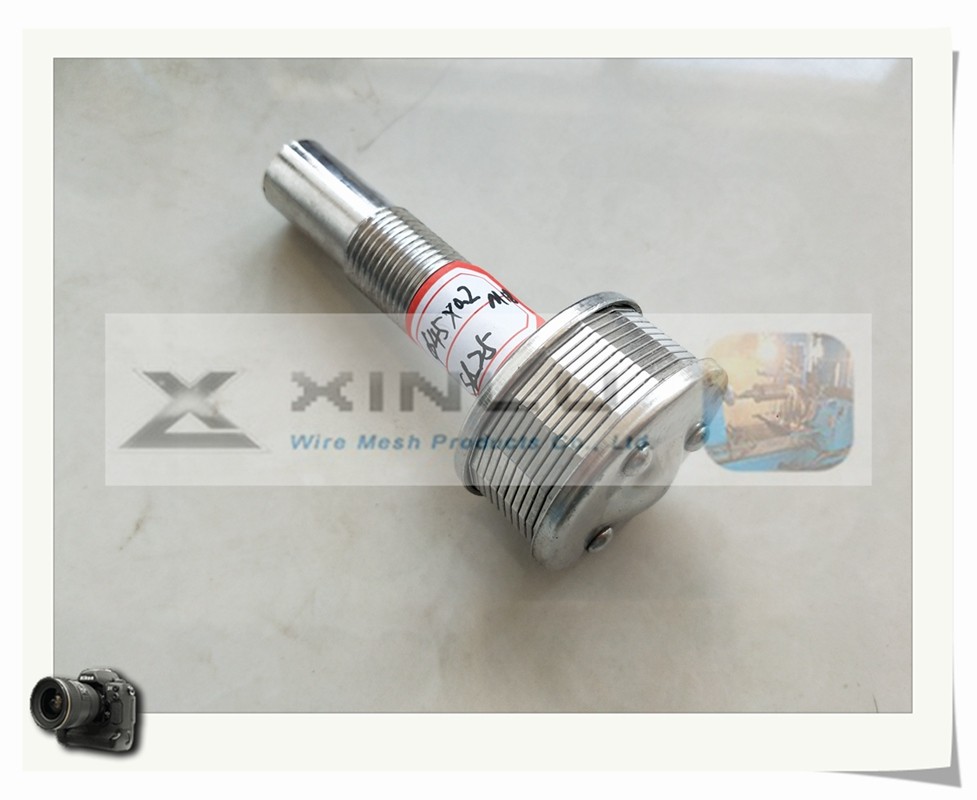

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd TRAPEZOID WIRE NOZZLES

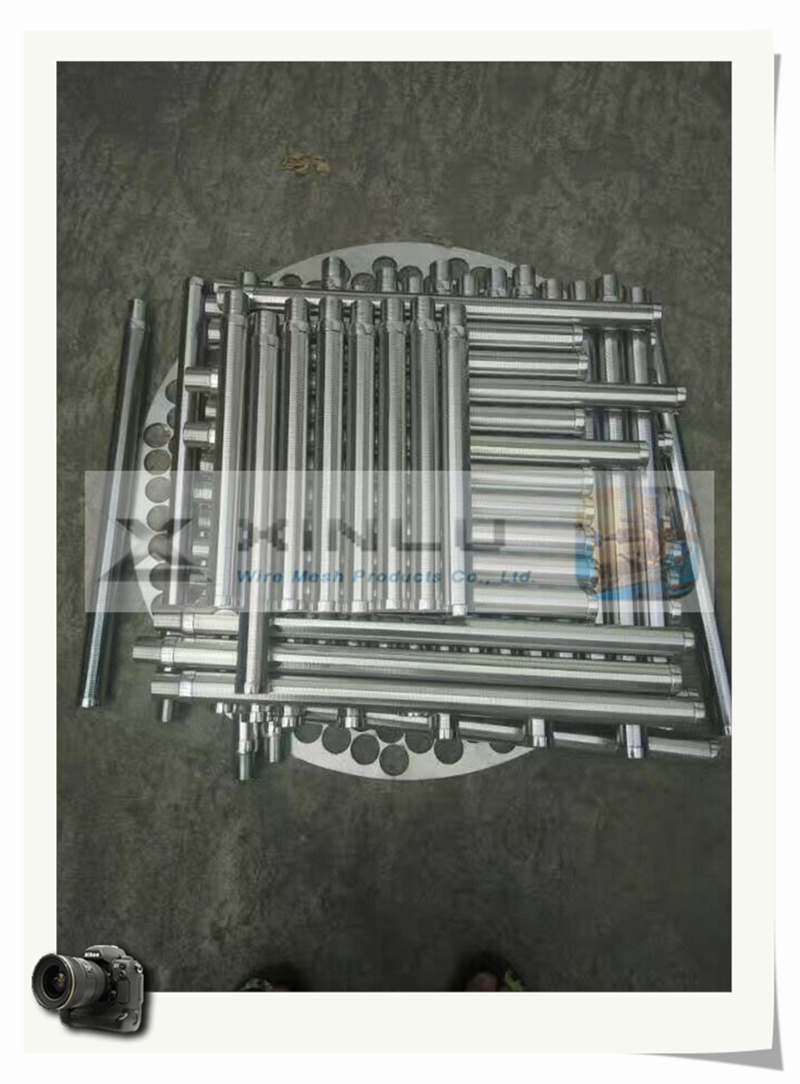

Nozzles are an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That's because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.
Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens manufactures nozzles using a welded trapezoidal (wedge) wire screen variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.
If needed, Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens can also custom manufacture nozzles to your exact specifications, including material, fitting type and sizes.
Made of V-shape profile wire and longitudinal support rod, each intersecting point of the wires is fusion welded, so it has sturdy constriction and good mechanical property.
The V-shape section can avoid blockage and make sure of the unimpeded water. And the continuous slot have flexiable open area, that can reduce the speed of the water entering to avoid the sand entering the screen under the pressure, so it can filter sand better.
And also the slot size can changed according to different requirment.
It is widely used for water, oil, and gas wells, and is the dominant water well screen used in the water well industry.
Specification:
1.Material: stainless steel(304, 304L, 316, 316L etc.)
low carbon, low carbon galvanized steel(LCG),
2.Diameter: Normal size is 45-108mm and etc.
More size can be made according to customer's requirment
3.Slot: 0.1mm, 0.2mm, 0.5mm, 0.75mm, 1mm, 1.5mm and etc.
Also can be made as customer's requirement.
4. Length: 1-6m (2.9 or 5.8m is suitable for container loading)
Advantage:
High flow rates
Non-clogging slot
Reduction cost in operating
Data reference table:
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
